Key: strapping machine,auto strapping machine,semi-automatic strapping machine,automatic strapping machine
The strapping machine takes polythene plastic strap as binding material, which is mainly used in packing and binding of paper carton, wooden box and paper and paper parcels in sectors of business, postal service, railway, bank, food, pharmaceutical and publishing.
strapping machine principle:
This industrial strapping machine dispenses, tightens and seals polypropylene while packing or bundling. The machine automatically tensions strap and joins the ends with a secure heat weld. Once the strap is inserted, the motor automatically gets switched off. The machine have stainless steel strapping surface. Our range includes industrial strapping machine, table strapping machine, box strapping machine, plastic strapping machine, steel strapping machine and ball top.
Strapping machineTotal:22 products

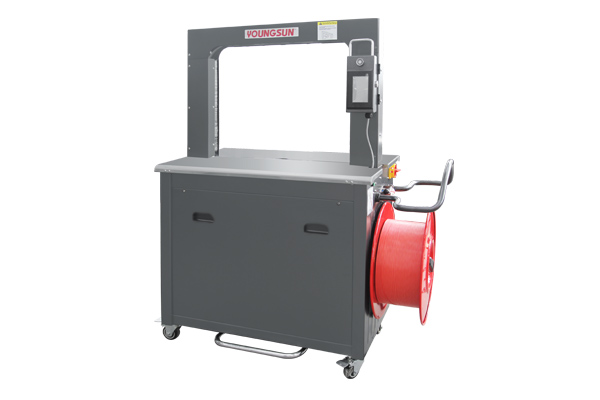

| YS-505 | |||
| High speed automatic Strapping Machine | |||
| Power supply
|
110V, 220V, 230V 50/60Hz 1PH 0.6kW | ||
| Tension Range: | 3~45kg | Packing Speed: | ≤65seconds/strap |
| Applicable PP Strap: | width:5mm,6mm,thickness:0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm，outer dia.400～450mm，width170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1170×W585×H1450mm | N.W: | 185kg(arch size650×500mm) |
| Packing Measurement: | L1220×W650×H1600mm | G.W | 230kg(arch size650×500mm) |
| YS-305 | |||
| High speed Automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 0.6kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 50cycles/min |
| Applicable PP Strap: | :width:5mm，6mm，thickness:0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1170xW585xH1450mm | N.W: | 185 kg (arch size650×500 mm)
|
| Packing Measurement: | L1220×W650×H1600mm | G.W | 230 kg (arch size650×500 mm) |
|
| |||
| New Generation of Semi-automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 0.35kW | ||
| Tension Range: | 3~45kg | Packing Speed: | ≤3seconds/strap |
| Applicable PP Strap: | width:5~15mm，thickness:0.5~0.85mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm，outer dia.400～500mm,width160～190mm | ||
| Working Table Height: | 750mm (optional 750~920mm adjustable) | ||
| Machine Dimension: | L840×W545×H750mm | N.W: | 70 kg |
| Packing Measurement: | L860×W550×H840mm | G.W | 80 kg |
| YS-A3F | |||
| New Generation of Semi-automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 0.35kW | ||
| Tension Range: | 3~45kg | Packing Speed: | ≤3seconds/strap |
| Applicable PP Strap: | width:5~15mm，thickness:0.5~0.85mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm，outer dia.400～500mm，width160～190mm | ||
| Working Table Height: | 750mm (optional 750~920mm adjustable) | ||
| Machine Dimension: | L840×W545×H750mm | N.W: | 70 kg |
| Packing Measurement: | L860×W550×H840mm | G.W | 80 kg |
| YS-A2F | |||
| Semi-automatic Strapping Machine | |||
| Power supply | 10V, 220V, 230V 50/60Hz 1PH 0.25kW | ||
| Tension Range: | 3~45kg | Packing Speed: | ≤3seconds/strap |
| Applicable PP Strap: | width:5~15mm,thickness:0.5~0.85mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm，outer dia.400～500mm,width160～190mm | ||
| Working Table Height: | 750mm (optional 750~920mm adjustable) | ||
| Machine Dimension: | L840×W545×H750mm | N.W: | 70 kg |
| Packing Measurement: | L860×W550×H840mm | G.W | 80 kg |
| YS-305P | |||
| Automatic Strapping Machine With Top Presser | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 40cycles/min |
| Applicable PP Strap: | width:5mm，6mm，thickness:0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1500×W585×H1970mm | N.W: | 220 kg (arch size1250×500 mm) |
| Packing Measurement: | L1600×W800×H2100mm | G.W | 280 kg (arch size1250×500 mm) |
| YS-505B | |||
| High Speed Fully Automatic Strapping Machine | |||
| Power supp ly | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 65cycles/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | Inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | ≥850mm | ||
| Machine Dimension: | L1480×W730×H1480mm | N.W: | 240 kg (arch size650×500 mm) |
| Packing Measurement: | L1600×W800×H1600mm | G.W | 280 kg (arch size650×500 mm) |

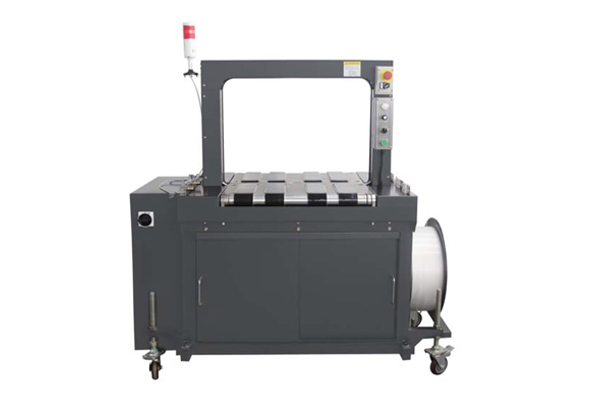

| YS-305B | |||
| High Speed Fully Automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 40cycles/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | ≥850mm | ||
| Machine Dimension: | L1480×W730×H1480mm | N.W: | 240 kg (arch size650×500 mm) |
| Packing Measurement: | L1600×W800×H1600mm | G.W | 280 kg (arch size650×500 mm) |

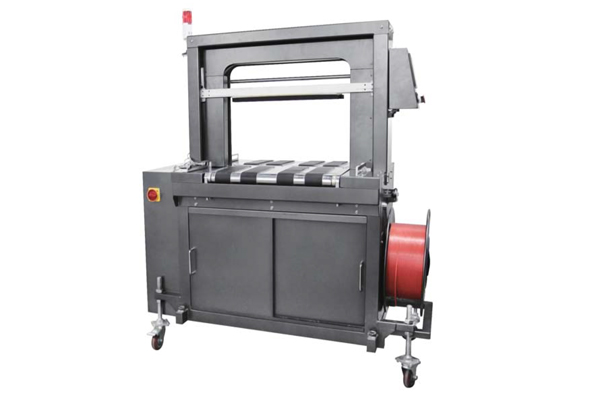

| YS-505BP | |||
| High Speed Fully Automatic Strapping Machine | |||
| Power supply | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 65cycles/minV |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | Inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | ≥850mm | ||
| Machine Dimension: | L1480×W730×H1980mm | N.W: | 270 kg (arch size650×500 mm) |
| Packing Measurement: | L1600×W800×H2100mm | G.W | 310 kg (arch size650×500 mm) |

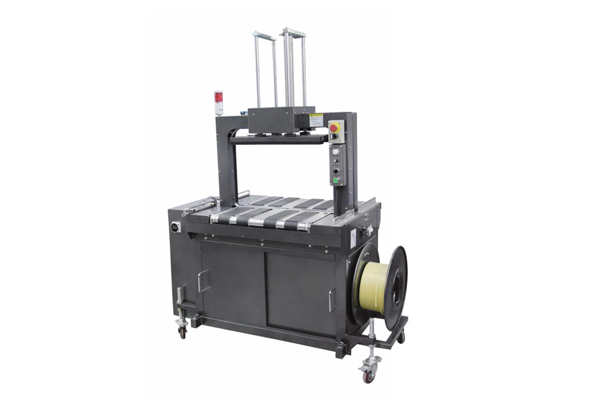

| YS-305BP | |||
| Fully Automatic Strapping Machine With Top Presser | |||
| Power Supply: | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 30cycles/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.200～210mm,outer dia.400～450mm,width170～190mm | ||
| Working Table Height: | ≥850mm | ||
| Machine Dimension: | L1480×W730×H1980mm | N.W: | 270 kg (arch size650×500 mm) |
| Packing Measurement: | L1600×W800×H2100mm | G.W | 310 kg (arch size650×500 mm) |

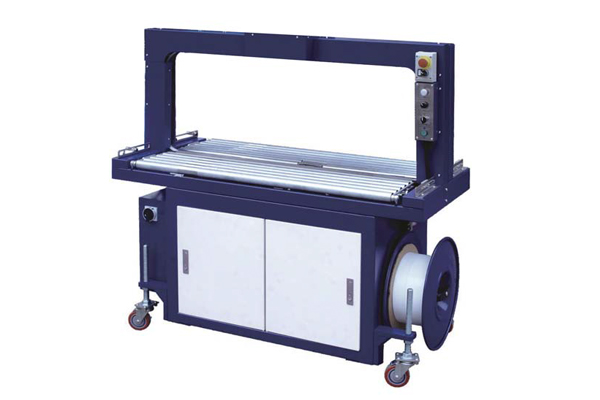

| YS-305R | |||
| Fully Automatic Strapping Machine | |||
| Power Supply: | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 30cycles/min |
| Applicable PP Strap: | width5mm，6mm，thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.:200～210mm，outer dia.:400～450mm,width:170～190mm | ||
| Working Table Height: | ≥850mm | ||
| Machine Dimension: | L1520×W680×H1500mm | N.W: | 250 kg (arch size1250×500 mm) |
| Packing Measurement: | L1600×W800×H1600mm | G.W | 300 kg (arch size1250×500 mm) |
| YS-505S | |||
| Fully Automatic Strapping Machine | |||
| Power Supply: | 110V, 220V, 230V 50/60Hz 1PH 1.0kW；220V, 380V, 400V 50/60Hz 3PH 1.0kW | ||
| Tension Range: | 0~45kg | Packing Speed: | 65cycles/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.:200～210mm,outer dia.：400～450mm,width：170～190mm | ||
| Working Table Height: | 540±80mm | ||
| Machine Dimension: | L1540×W500×H1672mm | N.W: | 245 kg (arch size1250×500 mm) |
| Packing Measurement: | L1640×W600×H1822mm | G.W | 280 kg (arch size1250×500 mm) |

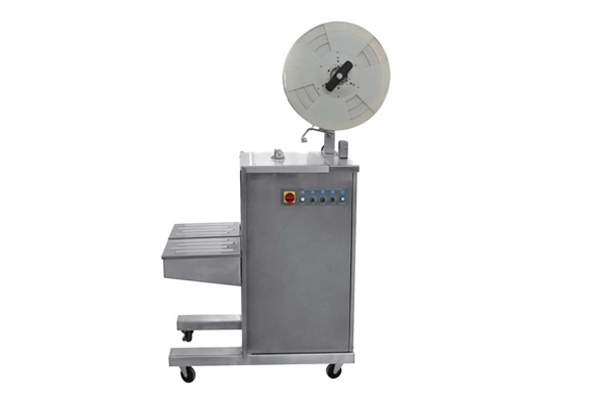

| YS-A3S | |||
| Stainless Steel Semi-automatic Strapping Machine | |||
| Power Supply: | 110V, 220V, 230V 50/60Hz 1PH 0.25kW | ||
| Tension Range: | 3~45kg | Packing Speed: | 3second/strap |
| Applicable PP Strap: | width:5mm-15mm,thickness0.5~0.85mm | ||
| Applicable PP Strap Spool: | inner dia.:200～210mm，outer dia.：400～500mm，width:160～190mm | ||
| Working Table Height: | ≥730mm(adjustable) | ||
| Machine Dimension: | L850×W550×H730mm | N.W: | 80 kg |
| Packing Measurement: | L870×W560×H780mm | G.W | 90 kg |

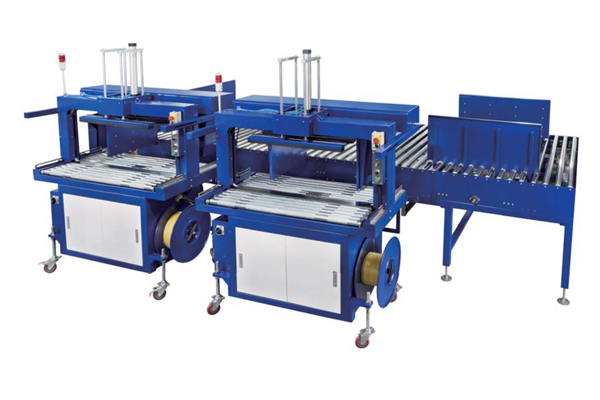

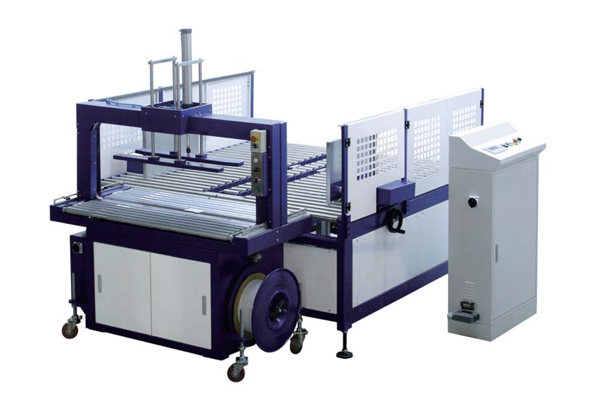

| YS-305RP | |||
| Corrugated Bundle Squaring & Strapping System | |||
| Power supply | 220V 50/60Hz 1PH 1.0kW | Air Pressure | 10L/cycle |
| Tension Range | 0~45kg | Packing Speed: | 13 packs/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～500mm，width：170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1520×W680×H2000mm | N.W: | 280 kg (arch size1250×500 mm) |
| Packing Measurement: | L870×W560×H780mm | G.W | 330 kg (arch size1250×500 mm) |
| YS-LX500 | |||
| Power supply | 380V 50/60Hz 3PH 1.0kW | ||
| Speed: | 13 packs/min | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1900×W2050×H1470mm | N.W: | 780 kg (arch size1250×500 mm) |
| Packing Measurement: | L2100×W19500×H1500mm | G.W | 820 kg (arch size1250×500 mm) |
| YS-305RPD | |||
| Corrugated Bundle Squaring & Strapping System | |||
| Power supply | 220V 50/60Hz 1PH 1.0kW | Air Pressure | 10L/cycle |
| Tension Range | 0~45kg | Packing Speed: | 18 packs/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～500mm，width：170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L2040×W1190×H2100mm | N.W: | 380 kg (arch size1250×500 mm) |
| Packing Measurement: | L2100×W19500×H1500mm | G.W | 440 kg (arch size1250×500 mm) |
| YS-LX500 | |||
| Power supply | 380V 50/60Hz 3PH 1.0kW | ||
| Speed: | 18 packs/min | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1900×W2050×H1470mm | N.W: | 780 kg (arch size1250×500 mm) |
| Packing Measurement: | L2100×W1950×H1500mm | G.W | 820 kg (arch size1250×500 mm) |
| YS-305RP | |||
| Corrugated Bundle Squaring & Strapping System | |||
| Power supply | 220V 50/60Hz 1PH 1.0kW | Air Pressure | 10L/cycle |
| Tension Range | 0~45kg | Packing Speed: | 20 packs/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～450mm，width：170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1520×W680×H1300mm | N.W: | 280 kg (arch size1250×500 mm) |
| Packing Measurement: | L1600×W800×H2100mm | G.W | 330 kg (arch size1250×500 mm) |
| YS-LX500D | |||
| Power supply | 380V 50/60Hz 3PH 1.6kW | ||
| Speed: | 20 packs/min | ||
| Working Table Height: | 850~950mm | ||
| Machine Dimension: | L4650×W1720×H1300mm | N.W: | 1700 kg (arch size1250×500 mm) |
| Packing Measurement: | L2700×W1800×H1500mm &L2000×W1800×H1500mm |
G.W | 1850 kg (arch size1250×500 mm) |

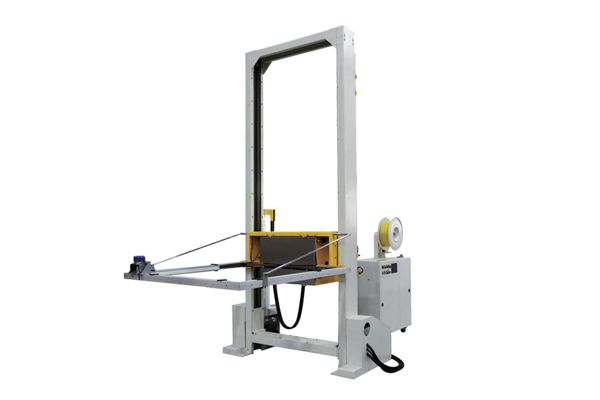

| MH-105A | |||
| Fully Automatic Horizontal Strapping Machine | |||
| Power Supply: | 380V 50/60Hz 3PH 3.1kW | Air Pressure | 0.4-0.6 MPA |
| Tension Range: | 0~90kg(adjustable) | Packing Speed: | ≤15second/strap |
| Applicable PP Strap: | width：9-15mm（±0.1），thickness：0.55~1.0（±0.1）mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～500mm，width：160～190mm | ||
| Machine Dimension: | L19300×W3240×H2800mm | N.W: | 350 kg (arch size1500×1500 mm) |

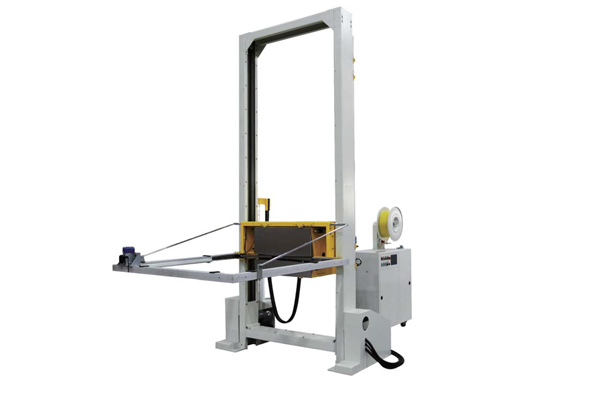

| Fully Automatic Horizontal Strapping Machine(Heavy) | |||
| Power Supply: | 380V 50/60Hz 3PH 3.1kW | Air Pressure | 0.4-0.6 MPA |
| Tension Range: | 20~250kg(adjustable) | Packing Speed: | ≤15second/strap |
| Applicable PP Strap: | width9-15(±0.1)mm，thickness0.55~1.0（±0.1）mm | ||
| Applicable PP Strap Spool: | inner dia.：406mm，outer dia.：600mm，width：190mm | ||
| Machine Dimension: | L1930×W3240×H2800mm | N.W: | 350 kg (arch size1500×1500 mm) |
| MH-105B | |||
| Fully Automatic Vertical Strapping Machine | |||
| Power Supply: | 380V 50/60Hz 3PH 1.6kW | Air Pressure | 0.4-0.6 MPA |
| Applicable PP Strap: | width:9-15(±0.1)mm，thickness0.55~1.0(±0.1)mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～500mm，width：160～180mm | ||
| Machine Dimension: | L4145×W845×H263mm | N.W: | 350 kg(arch size1500×2000 mm) |
| MH-105BH | |||
| Fully Automatic Vertical Strapping Machine | |||
| Power Supply: | 380V 50/60Hz 3PH 1.6kW | Air Pressure | 0.4-0.6 MPA |
| Tension Range: | 20~250kg(adjustable) | Packing Speed: | ≤15second/strap |
| Applicable PP Strap: | width:9-15(±0.1)mm，thickness0.55~1.0(±0.1)mm | ||
| Applicable PP Strap Spool: | inner dia.：406mm，outer dia.：600mm，width：190mm | ||
| Machine Dimension: | L4145×W845×H2630mm | N.W: | 350 kg(arch size1500×2000 mm) |
| MH-105C | |||
| Fully Automatic Vertical Strapping Machine With Top Presser | |||
| Power Supply: | 380V 50/60Hz 3PH 4kW | Air Pressure | 0.4-0.6 MPA |
| Tension Range: | 20~250kg(adjustable) | Packing Speed: | ≤15second/strap |
| Applicable PP Strap: | width:9-19(±0.1)mm，thickness0.55~1.0(±0.1)mm | ||
| Applicable PP Strap Spool: | inner dia.：406mm，outer dia.：600mm，width：190mm | ||
| Machine Dimension: | L4250×W800×H3300mm | N.W: | 350 kg(arch size1500×2000 mm) |
| AG02 | |||
| Automatic Banding Machine | |||
| Power Supply: | 110~120/200~240V 50/60Hz 1PH 0.25KW | ||
| Tension Range: | ≤5kg(adjustable) | Packing Speed: | 26cycles/min |
| Applicable Band: | paper/OPP film | Band Width: | standard 30mm (20mm is optional) |
| Applicable Band Spool: | refer to following material specification | ||
| Working Table Height: | 245mm | ||
| Machine Dimension: | L650×W360×H480mm | N.W: | 40 kg (arch size460×200mm) |
| L650×W360×H1140mm | N.W: | 75 kg (external dispenser, arch size460×200mm) | |
| Packing Measurement: | L680×W400×H630mm | G.W | 50 kg (arch size460×200mm) |
| L680×W470×H1290mm | G.W | 95 kg (external dispenser, arch size460×200mm) | |

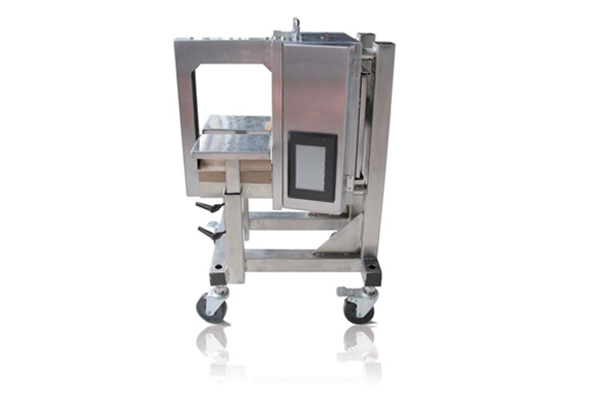

| AG03 | |||
| Automatic Banding Machine | |||
| Power Supply: | 110~120/200~240V 50/60Hz 1PH 0.25kW | ||
| Tension Range: | ≤5kg(adjustable) | Packing Speed: | 26cycles/min (arch size220×170mm) |
| Applicable Band: | OPP film | Band Width: | standard 12mm |
| Applicable Band Spool: | refer to following material specification | ||
| Working Table Height: | 215mm | ||
| Machine Dimension: | L380×W280×H415mm | N.W: | 18 kg (arch size220×170mm) |
| L520×W280×H505mm | N.W: | 22 kg (arch size360×260mm) | |
| Packing Measurement: | L440×W340×H550mm | G.W | 28 kg (arch size220×170mm) |
| L580×W340×H640mm | G.W | 35 kg (arch size360×260mm) | |
