Key: Carton sealer,Carton sealer machine,case sealer
Carton sealers are case equipment that seals the top or bottom of a case with tape or glue. Typically, the minor corrugated flaps are kicked and plowed closed as the cases are transferred. As the cases enter the compression section, the major flaps of the carton are closed and a hot-melt adhesive is applied.
Carton sealer machine Total：25 products
FJ-1A (With Guide)?Automatic Carton Sealer
· Top & side belts drive
· Suitable for heavy prodcuts
· Top & side belts drive
· Suitable for heavy prodcuts
| Model | FJ-1A |
| Power supply | 1p 110V/220V 50Hz/60Hz 600W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-480)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1090)×W(890)×H(1280)mm |
| Shipping size | L(1200)×W(1050)×H(1435)mm |
| G.W/N.W | 250kg/200kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Stainless steel |
FJ-1AW Automatic Carton Sealer
· side belts drive
· Suitable for prodcuts in weight
· side belts drive
· Suitable for prodcuts in weight
| Model | FJ-1AW |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-480)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1090)×W(890)×H(1280)mm |
| Shipping size | L(1200)×W(1050)×H(1435)mm |
| G.W/N.W | 230kg/180kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Stainless steel |
FJ-1AWS Smart stainless Steel Carton Sealer
· side belts drive
· Suitable for prodcuts in small box
· side belts drive
· Suitable for prodcuts in small box
| Model | MH-FJ-1AWS |
| Power supply | 1p 110V/220V 50Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(200-∞)×W(95-300)×H(70~480)mm |
| Tape size | 48mm(Kraft or BOPP tape) folded tape 35mm |
| Machine size | L(1090)×W(690)×H(1280)mm |
| Shipping size | L(1150)×W(850)×H(1435)mm |
| G.W/N.W | 230kg/180kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Not stainless steel |
FJ-1AWE Automatic Carton Sealer
| Model | MH-FJ-1AWE |
| Power supply | 3p 380V 50Hz 600W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-480)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1370)×W(890)×H(1280)mm |
| Shipping size | L(1400)×W(1050)×H(1435)mm |
| G.W/N.W | 250kg/200kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Not stainless steel |
Click
FJ-1AE (With Guide)?Automatic Carton Sealer
· Top & side belts drive
· Suitable for heavy prodcuts
· Top & side belts drive
· Suitable for heavy prodcuts
| Model | FJ-1AE |
| Power supply | 3p 380V 50Hz 600W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-480)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1370)×W(890)×H(1280)mm |
| Shipping size | L(1500)×W(1050)×H(1435)mm |
| G.W/N.W | 270kg/220kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Stainless steel |
FJ-1D Automatic Carton Sealer
· Top & bottom belts drive
· Suitable for products in light weight
· Top & bottom belts drive
· Suitable for products in light weight
| Model | FJ-1D |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(180-580)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(970)×W(890)×H(1280)mm |
| Shipping size | L(1150)×W(1050)×H(1435)mm |
| G.W/N.W | 240kg/190kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Stainless steel |
MH-FJ-1S Automatic Carton Sealer
· Side?sealer
· Top & bottom belts drive
· Side?sealer
· Top & bottom belts drive
| Model | MH-FJ-1S |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(130-∞)×W(190-410)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(968)×W(1090)×H(1280)mm |
| Shipping size | L(1150)×W(1100)×H(1435)mm |
| G.W/N.W | 245kg/185kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Stainless steel |
FJ-2 Side-band Automatic Carton Sealer
· Side?belts drive
· Automatically adjust the sealing height and width
· Side?belts drive
· Automatically adjust the sealing height and width
| Model | FJ-2 |
| Power supply | 1p 110V/220V 50Hz/60Hz 600W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-470)×H(120-450)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1150)×W(1005)×H(1230)mm |
| Shipping size | L(1200)×W(1100)×H(1400)mm |
| G.W/N.W | 300kg/250kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
FJ-3A Automatic Carton Sealer
· Side?belts drive
· Automatically fold the top flaps
· Side?belts drive
· Automatically fold the top flaps
| Model | FJ-3A |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(200-550)×W(120-480)×H(127-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1650)×W(988)×H(1370)mm |
| Shipping size | L(2000)×W(1050)×H(1570)mm |
| G.W/N.W | 360kg/300kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ?④Stainless steel |
FJ-3AE With Guard Automatic Carton Sealer
· Side?belts drive
· Automatically fold the top flaps
· Side?belts drive
· Automatically fold the top flaps
| Model | FJ-3AE |
| Power supply | 3p 380V 50Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(200-550)×W(150-480)×H(127-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1920)×W(890)×H(1370)mm |
| Shipping size | L(2000)×W(1050)×H(1570)mm |
| G.W/N.W | 360kg/300kg |
| Optional | ①Extension roller table ?②Guard?③Stainless steel? |
FJ-3AR With Guard Automatic Carton Sealer
· Side?belts drive
· Automatically fold the top flaps
· Side?belts drive
· Automatically fold the top flaps
| Model | FJ-3AR |
| Power supply | 3p 380V 50Hz/60Hz 600W |
| Sealing speed | 37 meters/min |
| Carton size | L(200-660)×W(160-400)×H(160-450)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(2100)×W(1000)×H(1470)mm |
| Shipping size | L(2300)×W(1150)×H(1670)mm |
| G.W/N.W | 360kg/300kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ?④Stainless steel ⑤Hot glue |
FJ-3B Side-band Automatic Carton Sealer
· Automatically fold the top flaps
· Automatically adjust the sealing height and width
· Suitalbe to connect to the full automatic packaging line
· Automatically fold the top flaps
· Automatically adjust the sealing height and width
· Suitalbe to connect to the full automatic packaging line
| Model | FJ-3B |
| Power supply | 3p 380V 50Hz/60Hz 1200W |
| Sealing speed | 20 meters/min |
| Carton size | L(250-600)×W(180-450)×H(150-450)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(2100)×W(1050)×H(1750)mm |
| Shipping size | L(2150)×W(1100)×H(2000)mm |
| G.W/N.W | 640kg/550kg |
FJ-3C Automatic Carton Sealer
· Suitable for the cartons with extra width,extra height and extra length
· Fold the ?top of cartons automatically
· Suitable for the cartons with extra width,extra height and extra length
· Fold the ?top of cartons automatically
| Model | FJ-3C |
| Power supply | 3p 380V 50Hz/60Hz 1370W |
| Sealing speed | 20 meters/min |
| Tape size | 48-72mm(Kraft or BOPP tape) |
FJ-3D Automatic Carton Sealer
· Suitable for large-sized packages
· With the automatic box nailing machine (Automatic nailing up and down or sealing cartons up and down is optional)
· Fold the ?top of cartons automatically
· Suitable for large-sized packages
· With the automatic box nailing machine (Automatic nailing up and down or sealing cartons up and down is optional)
· Fold the ?top of cartons automatically
| Model | FJ-3D |
| Power supply | 3p 380V 50Hz/60Hz 1370W |
| Sealing speed | 20 meters/min |
| Tape size | 48-72mm(Kraft or BOPP tape) |
FJ-P1 Cornser-type Full Automatic Carton Sealer
· Auto sealing top & bottom edges
· Manually adjust carton sizes
· Auto sealing top & bottom edges
· Manually adjust carton sizes
| Model | FJ-P1 |
| Power supply | 1p 110V/220V 50Hz/60Hz 1000W |
| Sealing speed | 20 meters/min |
| Carton size | L(340-670)×W(200-500)×H(200-500)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(2200)×W(1280)×H(1400)mm |
| Shipping size | L(2250)×W(1330)×H(1600)mm |
| G.W/N.W | 550kg/480kg |
FJ-701B Automatic Carton Sealer
| Model | FJ-701B |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 22 meters/min |
| Carton size | L(180-∞)×W(140-480)×H(120-500)mm |
| Tape size | 48mm(Kraft or BOPP tape) |
| Machine size | L(1158)×W(890)×H(1230)mm |
| Shipping size | L(1300)×W(1090)×H(1330)mm |
| G.W/N.W | 220kg/170kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
YS-501AW Automatic Carton Sealer
· Side belts drive
· Suitable for products in light weight
· Side belts drive
· Suitable for products in light weight
| Model | FJ-701B |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(180-∞)×W(140-480)×H(120-480)mm |
| Tape size | 48mm(Kraft or BOPP tape) |
| Machine size | L(1158)×W(890)×H(1230)mm |
| Shipping size | L(1300)×W(1090)×H(1330)mm |
| G.W/N.W | 220kg/170kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
YS-501D Automatic Carton Sealer
· Top & bottom belts drive
· Suitable for products in light weight
· Top & bottom belts drive
· Suitable for products in light weight
| Model | YS-501D |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(180-500)×H(120-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1150)×W(890)×H(1280)mm |
| Shipping size | L(1150)×W(1050)×H(1435)mm |
| G.W/N.W | 240kg/190kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
YS-501X Automatic Carton Sealer
| Model | YS-501X |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 22 meters/min |
| Carton size | L(150-∞)×W(170-480)×H(120-560)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1598)×W(910)×H(1370)mm |
| Shipping size | L(1800)×W(1100)×H(1570)mm |
| G.W/N.W | 290kg/340kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
YS-502D Automatic Carton Sealer
| Model | YS-502D |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 22 meters/min |
| Carton size | L(150-∞)×W(180-580)×H(130-600)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1598)×W(910)×H(1420)mm |
| Shipping size | L(1800)×W(1100)×H(1520)mm |
| G.W/N.W | 310kg/360kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Stainless steel |
YS-502 (Stainless Steel) Automatic Carton Sealer
· Side belts drive
· Suitable for products in light weight
· Automatically adjust the sealing height and width
· Side belts drive
· Suitable for products in light weight
· Automatically adjust the sealing height and width
| Model | YS-502 |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(120-470)×H(130-450)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1154)×W(920)×H(1275)mm |
| Shipping size | L(1690)×W(970)×H(1425)mm |
| G.W/N.W | 300kg/250kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Not Stainless steel |

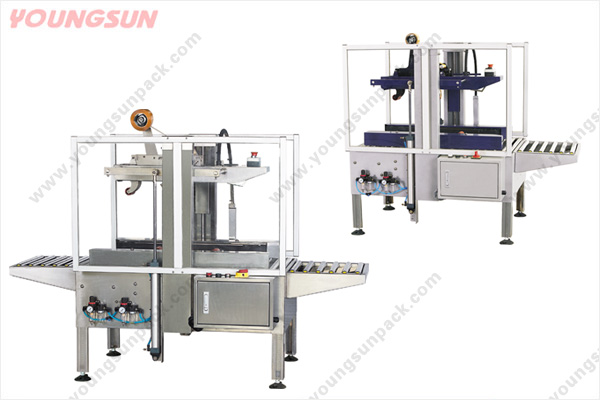

YS-502CF Automatic Carton Sealer
| Model | YS-502CF |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(200-500)×W(200-460)×H(130-480)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(2020)×W(990)×H(1430)mm |
| Shipping size | L(2200)×W(1050)×H(1480)mm |
| G.W/N.W | 400kg/350kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Not Stainless steel |
M2 Mini Automatic Carton Sealer
| Model | M2 |
| Power supply | 1p 110V/220V 50Hz/60Hz 400W |
| Sealing speed | 22 meters/min |
| Carton size | L(150-∞)×W(120-450)×H(120-450)mm |
| Tape size | 48-72mm(Kraft or BOPP tape) |
| Machine size | L(1114)×W(1000)×H(1380)mm |
| Shipping size | L(1300)×W(1100)×H(1480)mm |
| G.W/N.W | 300kg/250kg |
| Optional | ①Extension roller table ?②Feet wheel ?③Guard ④Not Stainless steel |
MA Mini Automatic Carton Sealer
| Model | MA |
| Power supply | 220V 50Hz 400W |
| Sealing speed | 22 meters/min |
| Carton size | L(150-∞)×W(120-500)×H(120-500)mm |
| Tape size | 48-60mm(Kraft paper or BOPP) |
| Machine size | L(850)×W(880)×H(1200)mm (the height depends on the carton size) |
| Worktable height | 750mm |
| Weight | 90kg |
| Optional | ①Extension roller table |
MD Mini Automatic Carton Sealer
| Model | MD |
| Power supply | 220V 50Hz 400W |
| Sealing speed | 20 meters/min |
| Carton size | L(150-∞)×W(180-450)×H(120-480)mm |
| Tape size | 48-60mm(Kraft paper or BOPP) |
| Machine size | L(850)×W(780)×H(1270)mm (the height depends on the carton size) |
| Worktable height | 750mm |
| Weight | 120kg |
| Optional | ①Extension roller table |
