Click

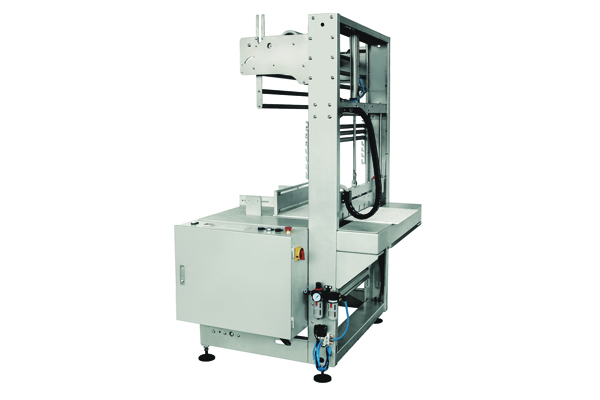

YS-ZB-1 Auto sleeve packager shrink wrapper machine

Parameter

YS-ZB-1

YS-ZJ2/4

Shrink tunnel

Standard

configuration

with 2/4 fans

Max. Speed

12packs/min

0-18m/min

Combinaton form Sealing temperature

Sealing blade width

customer made

150-180°C

650mm

Temperature

range:150-230°C

Power supply

AC380V±10%/50Hz

,2.0kw

AC380V/50Hz,

28kw

Machine Size(L*W*H)

L1290 x W1000

x H2000

L3000 x W2200

x H1530

Working height

850mm(customer made)

Machine configuration

PLC:

"Siemens"

Touch screen

:"Xinje"

Thermocouple

Air switch:"CHINT"

Transducer:

"Schneider"

Motor

:"MEIWA"

Motor:"MEIWA"

Mesh chain

motor:"MEIWA"

Button,Contactor and Relay:"Schneider"

Small relay,Button

,Contactor

,Transducer

:"Schneider"

Temperature

controller:"Omron"

Proximity switch

and photoelectricity switch：“SICK”

Axial motor:0.1KW

2800R/min 250FZY6-D

Cylinder and

pneumatic

components

:"Airtac/SMC"

Click

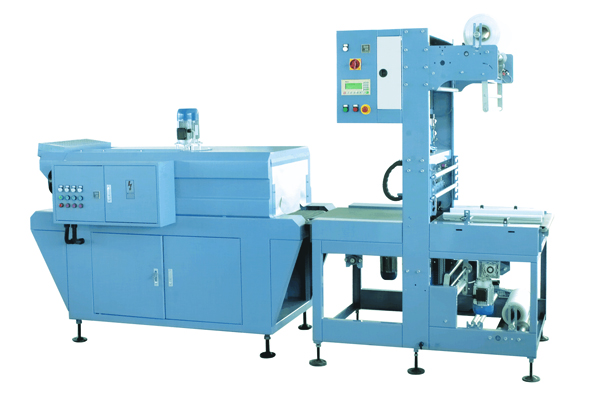

YS-ZB-2 Auto sleeve packager shrink wrapper machine
Parameter	YS-ZB-2		YS-ZJ2/4 Shrink tunnel
	Standard configuration		with 2/4 fans
Max. Speed	15packs/min		0-18m/min
Combinaton form Sealing temperature Sealing blade width	customer made 150-180°C 650mm		Temperature range:150-230°C
Power supply	AC380V±10%/50Hz ,2.0kw		AC380V/50Hz ,28kw
Machine Size(LWH)	L1500 x W9200 x H2000mm		L3000 x W2200 x H1530mm
Working height	750mm
Machine configuration	PLC: "Siemens"	Touch screen: "Xinje"	Thermocouple	Air switch:"CHINT"
	Transducer: "Schneider"	Motor: "MEIWA"	Motor :"MEIWA"	Mesh chain motor:"MEIWA"
	Button,Contactor and Relay:"Schneider"		Small relay,Button, Contactor ,Transducer :"Schneider"	Temperature controller:"Omron"
	Proximity switch and photoelectricity switch：“SICK”		Axial motor:0.1KW 2800R/min 250FZY6-D
	Cylinder and pneumatic components:"Airtac/SMC"

Click

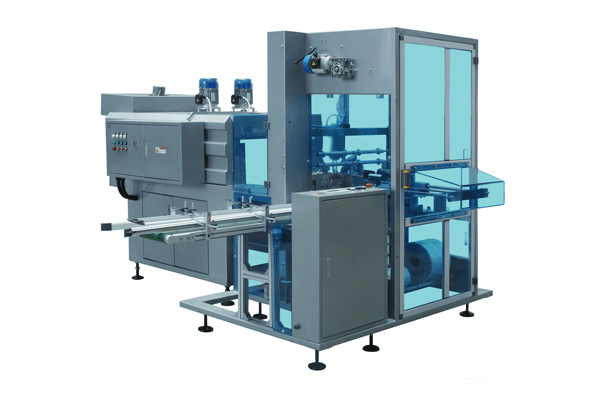

Auto sleeve packager shrink wrapper machine YS-ZB-3

Parameter

YS-ZB-3

YS-ZJ1/2

Shrink tunnel

Standard configuration

with 1/2 fans

Max. Speed

6×4

10packs/min

0-18m/min

3×4

12packs/min

Combinaton form Sealing temperature

Sealing blade width

customer made

150-180°C

650mm

Tunnel size

:L2000×W1500

×H330mm

Temperature range

:150-230°C

Power supply

AC380V±10%/50Hz

,3kw（3P 5wires）

AC380V/50Hz

,28kw

Machine Size(L*W*H)

L1200 x W1500

x H1950mm

L3000 x W2200

x H1530mm

Working height

850mm

Machine configuration

PLC:

"Siemens"

Touch screen

:"Xinje"

Thermocouple

Air switch

:"CHINT"

Transducer:

"Schneider"

Motor

:"MEIWA"

Motor:"MEIWA"

Mesh chain

motor

:"MEIWA"

Button,Contactor

and Relay:

"Schneider"

Small relay

,Button Contactor

,Transducer:

"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Axial motor

:0.1KW 2800R/min

250FZY6-D

Cylinder and

pneumatic

components

:"Airtac/SMC"

Click

YS-ZB-4 Shrink Wrapping Machine
Parameter	YS-ZB-4
Max. Speed	6-12packs/min
Combinaton form	Cuff semi-enclosed or fully enclosed
Sealing temperature	150℃～180℃
Air pressure	0.5-0.8MPA
Power supply	AC380V±10%/50Hz, 5kW (3P 5wires)
Machine Size(LWH)	L1200 x W1500 x H1950mm
Noise	≤75DB
Work environment	humidity≤98%, temperature-10℃～40℃
Machine configuration	PLC："Siemens"		Touch screen："xinje"
	Servo Motors/driver:”Siemens”		Motor:"MEIWA"
	Button,Contactor and Relay:"Schneider"	Cylinder and pneumatic components: "Airtac/SMC"	Transducer:"Schneider"
	Proximity switch and photoelectricity switch："SICK"

Click

YS-ZB-4C Shrink Wrapping Machine
Parameter	YS-ZB-4C			YS-ZJ-04-I Shorter shrink tunnel
	Direct-delivery film structure			L3.5m
Max. Speed	250ml	4×6	30packs/min	0-18m/min
	500ml	3×4	25packs/min
	1L	2×3	20packs/min
Combinaton form Bottle capacity Bottle dimension	2×3 3×4 (customer made ) 0.25~5L Dia.45~120Height 90~350mm			Tunnel mesh belt size: 710mm w
				Tunnel size :L2300×W1360 ×H990mm
				Temperature control scope :≤5°C
Working height	1150±50mm
Machine configuration	PLC: "Siemens"		Touch screen :"Xinje"	Thermocouple	Air switch :"CHINT"
	Transducer: "Schneider"		Motor :"MEIWA"	Motor:"MEIWA"	Mesh chain motor :"MEIWA"
	Button,Contactor and Relay: "Schneider"		Transducer: "Schneider" /Danfoes	Relay ,Button Contactor: :"Schneider"	Temperature controller :"Omron"
	Proximity switch and photoelectricity switch：“SICK”			Cirulation fan,cooling system fan:2-4 fans
	Cylinder and pneumatic components :"Airtac"			Axial motor :0.1KW 2800R/min 250FZY6-D
Optional	Color film

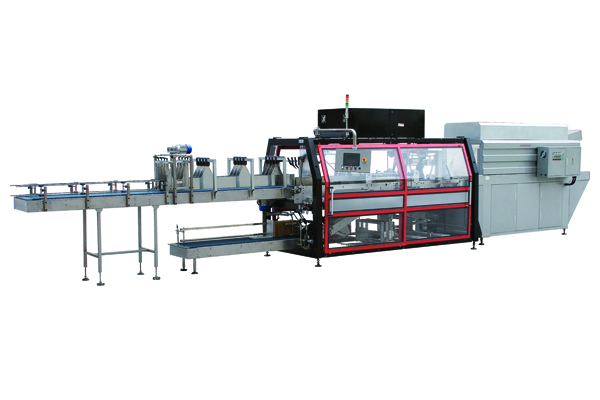

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-4C-1A Pad Shrink Wrapping Machine

Parameter

YS-ZB-4C-1A

YS-ZJ-04-I Shorter

Shrink tunnel

Direct-delivery film structure

L3.5m

Speed

250ml

4×6

30packs/min

0-18m/min

500ml

3×4

25packs/min

1L

2×3

20packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 (customer made)

0.25~5L

Dia.45~120Height 90~350mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L2300

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

9.7kW (3P 5wires)

AC380V±10%/50

Hz, 70.5kW

(1.5kw 44 tubes)

Machine Size

L7530xW1670

xH2508 mm

L3550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x5

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"Airtac"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Click

YS-ZB-5B Shrink Wrapper The continuous-sealing wrappers
Techical Parameters	YS-ZB-5B		TUNNEL (FT-4525)
Power supply	3P 380V 50/60hz 4kw		380v 3p,6.5kw
Overall machine dimensions	W 1400 x L 2000 x H 1300mm		W 1000 x L 1800x H 1320mm
Working plate height(on stand)	850mm±50mm（customer made）
Machine weight	N.W 770kg G.W 810kg		N.W 560kg G.W 610KG
Maximum sealing dimensions	L∞mm x W 400mm		\
Maximum product height	150mm		\
Minimum film width	200mm		\
Maximum film width	500mm		\
Compressed air pressure	5-6kg/cm2		\
Speed	40-45psc/min		0-18m/min
Electrical configuration	Intermediate relay:"Schneider"/"Omron"	Contactor:"Scheider"	Button switch:"Scheider"
	Temperature controller:"MEIWA"	Time relay:"MEIWA"	Motor:"MEIWA"
	Pneumatic element:"Airtac"

*notes:Technical data subject to variations without prior notice Output depends on the operator and type of the package

Click

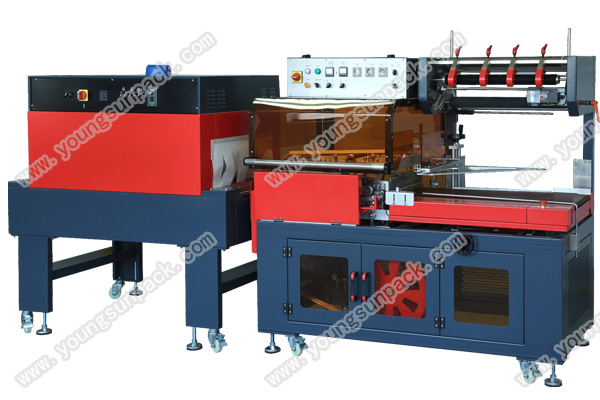

YS-ZB-5AY Shrink Wrapper Machine L type full automatic
Techical Parameters	YS-ZB-5AY	Shrink Tunnel (RS-5)
Power supply	220V.1P，3KW	380V? 3P,?6.5kw
Overall machine dimensions	W850mm×L1800MM× H1600mm	W850mm×L1600MM× H1500mm
Working plate height	780mm±50mm(customer made)
Tunnel entrance dimensions	\	550mm*220mm
Tunnel length	\	1100mm
Machine weight	N.W 465kg	N.W 250kg
Machine weight	G.W 500kg	G.W 290kg
Maximum sealing dimensions	W450mm×L550mm	\
Minimum sealing dimensions	W90mm×L90mm	\
Maximum product height	150mm
Minimum film width	200mm
Maximum film width	500mm
Compressed air pressure	6bar
Speed	25pcs/min	0-12m/min
Electrical configuration	Intermediate relay:"Schneider"/"Omron"	Contactor:"Scheider"	Button switch:"Scheider"
	Temperature controller:"MEIWA"	Time relay:"MEIWA"	Motor:"MEIWA"
	Pneumatic element:"Airtac"
Packing objects Minimum sealing dimensions;(A×B×C)90mm×90mm×10mm Maximum sealing dimensions;(A×B×C)550mm×450mm×150mm Maximum product;L500mm×W400mm×H120mm；W＋H≤450 Biggest annotations;B＋C must not more than 500mm Largest size cannot be used? A×B×C to do the packing

Click

YS-ZB-5AX Shrink Wrapper Machine （L Type Full Automatic)
Model	Wrapper machine （YS-ZB-5AX)	Shrink Tunnel (FT4020)
Power supply	220V/50Hz 6A 3KW	380V/50Hz 32A 7kw
Compressed air	0.5NI/cycle 6 Bar
Packing speed	0-35 package/min
Convey speed	25m/min
Box range	L130~500W70~350H100mm		Entrance size of Tunnel W400mm*H200mm
Working plate height	780mm(customer made)
Sealing knife material	Stainless steel，spray Teflon；
Sealing temperature	180-230℃(Sealing time＜1.5s/cycle)
Film size calculation	Film width=w+H+120 (Max.550mm) when box H>80mm; Film width=w+H+100 (Max.550mm) when box H<80mm
Film parameters	Material: POF for PE film Max roller DIA:300mm, thickness;0.015-0.019㎜ Film lateral contraction ratio;60% Film vertical contraction ratio;60%
Machine dimensions	L1800×W810×H1530(mm)		L1500×W800×H1500(mm)
Machine weight	420kg		150kg
Electrical configuration	PLC;YOUNGSUN Touch screen: YOUNGSUN Button switch; P+F Temperature controller; Tai wan “Gongbao” Intermediate relay; France “Schneider” Pneumatic element; Tai wan “AirTAC” Motor; “Gold vader”
Optional: Conveyor belt	chain roller conveyor belt Fiber mesh belt Stainless steel mesh belt etc.

Click

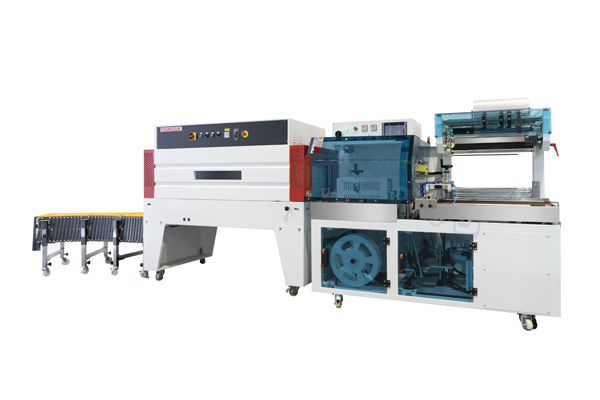

YS-ZB-5AB Shrink Wrapper Machine (Side Sealing Automatic)
Model	Shrink wrapper machine (YS-ZB-5AB)	Shrink Tunnel (FT4020)
Power supply	220V/50Hz 6A 3KW 1P	380V/50Hz 32A 7kw
Compressed air	0.5 MPa～0.7MPa
Packing speed	0-35 package /min
Convey speed	25m/min
Box range	L50~∞W50-370H5-140mm		Entrance size of Tunnel W400mm*H200mm
Working plate height	800mm (customer made)
Sealing knife material	Stainless steel，spray Teflon；
Sealing temperature	180-230℃(Sealing time＜1s/cycle)
Film size calculation	Film?width=W+H+120?(Max.550mm)?when?box?H>80mm Film?width=W+H+100(Max.550mm)??when?box?H<80mm
Film parameters	Material: POF for PE film Max roller DIA:300mm, thickness;0.015-0.019㎜ Film lateral contraction ratio;60% Film vertical contraction ratio;60%
Machine dimensions	L1800×W1000×H1520mm		L1500mmW800mmH1500mm
Machine weight	500kg		150kg
Electrical configuration	PLC Controller：YOUNGSUN Touch screen”YOUNGSUN Contactor：France“Schneider” Proximity switch：“P+F” Motor：China“MEIWA” Cylinder;Airtac Time relay：France“Schneider” Micro switch; Sick Temperature controller; GONGBAO
Optional: Conveyor belt	chain roller conveyor belt、Fiber mesh belt、Stainless steel mesh belt etc.

Click

YS-ZB-6I Shrink Wrapping Machine With One Lane

Standard configuration

Parameter

YS-ZB-6I

YS-ZJ-06-IL

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

250ml

4×6

50

packs/min

0-18m/min

500ml

3×4

＜50

packs/min

1L

2×3

＜45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunnel size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Click

YS-ZB-6I Shrink Wrapping Machine With One Lane

Parameter

YS-ZB-6I

YS-ZJ-06-IH Longer

Shrink tunnel

Longer shrink machine

L6.5m

Speed

250ml

4×6

60

packs/min

0-18m/min

500ml

3×4

50

packs/min

1L

2×3

45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

1050mm w

Tunnel size:

L5000

×W1560×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 140kW

(1.5kw 88 tubes)

Machine Size

L8800xW1670xH2508 mm

L6550xW1770

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Click

YS-ZB-6I Shrink Wrapping Machine With One Lane

Parameter

YS-ZB-6I

YS-ZJ-06-IL Longer

Shrink tunnel

Pre-delivery film structure(Swirl air pump)

L4.5m

Speed

250ml

4×6

60

packs/min

0-18m/min

500ml

3×4

50

packs/min

1L

2×3

45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunnel size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56tubes)

Machine Size

L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6II Shrink Wrapping Machine With Two Lane

Parameter

YS-ZB-6III

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

250ml

4×6

＜100

packs/min

0-18m/min

500ml

3×4

＜80

packs/min

1L

2×3

120

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(Max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6II Shrink Wrapping Machine With Two Lane

Parameter

YS-ZB-6II

YS-ZJ-06-IIH

Shrink tunnel

Longer shrink machine

L6.5m

Speed

500ml

2×3

100

packs/min

0-18m/min

1L

2×3

80

packs/min

330ml

2×3

130

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

1050mm w

Tunne size:

L5000

×W1560×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 140kW

(1.5kw 88 tubes)

Machine Size

L8800xW1670xH2508 mm

L6550xW1770

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6II Shrink Wrapping Machine With Two Lane

Parameter

YS-ZB-6III

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

500ml

3×3

100

packs/min

0-18m/min

1L

2×3

80

packs/min

330ml

2×3

130

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(Max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

15.32kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6I(ZX) Shrink Wrapping Machine With Two Lane

Parameter

YS-ZB-6I(zx)

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

45 packs/min

0-18m/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 4×6 (customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

8.06kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L4360xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x4

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6IA Pad Shrink Wrapping Machine With One Lane

Parameter

YS-ZB-6IA

YS-ZJ-06-IL

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

500ml

3×3

45 packs/min

0-18m/min

500ml

3×4

40 packs/min

1L

2×3

35 packs/min

Combination form

Bottle capacity

Bottle dimension

3×3 3×4 4×6 (customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

11.06kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6IIA Pad Shrink Wrapping Machine With Two Lanes

Parameter

YS-ZB-6IIA

YS-ZJ-06-IIL

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

500ml

4×3

80 packs/min

0-18m/min

500ml

3×3

90 packs/min

1L

2×3

70 packs/min

Combination form

Bottle capacity

Bottle dimension

3×3 3×4 (max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

11.96kW (3P 5wires)

AC380V/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1770

xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

YS-ZB-6II Shrink Wrapping Machine Click

YS-ZB-6IB Tray Shrink Wrapping Machine

Parameter

YS-ZB-6IIB

YS-ZJ-06-IIL

Shrink tunnel

Direct-delivery film structure

L4.5m

Speed

45 packs/min

0-18m/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 4×6(max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

19.4kW (3P 5wires)

AC380V/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L11290xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height

1150+50mm

Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch：“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

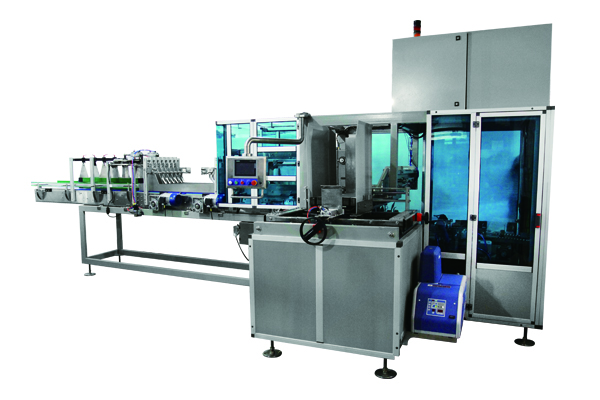

YS-ZX-10T Shrink Wrapper
Click

YS-ZX-10T+MH-ZB-2 Tray Cardboard Wrappping Machine
Parameter	ZX-10T
Packing speed	13pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1150 mm(customer order)
Machine size	L5571mmxW1512mmx H1700mm
Power supply	3P AC380V±10% 50HZ 9.52KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:LILAI
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"Festo"

YS-ZX-20T Shrink Wrapper
Click

YS-ZX-20T Wrap Around Carton Box Machine
Parameter	ZX-20T
Packing speed	20pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1150 mm(customer order)
Machine size	L7550mmxW2650mmx H1900mm
Power supply	3P AC380V±10% 50HZ 9.52KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:LILAI
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"Festo"

YS-ZX-30T Shrink Wrapper
Click

YS-ZX-30T Wrap Around Carton Box Machine
Parameter	ZX-30T
Packing speed	24pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1150 mm(customer order)
Machine size	L7550mmxW2650mmx H2100mm
Power supply	3P AC380V±10% 50HZ 9.52KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:LILAI
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"Festo"

YS-ZX-35TA Shrink Wrapper
Click

YS-ZX-35TA Wrap Around Carton Box Machine
Parameter	ZX-35TA（Without turn）
Packing speed	26pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	800 mm(customer order)
Machine size	L8782mmxW2300mmx H2100mm
Power supply	3P AC380V±10% 50HZ 19.7KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:LILAI
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"Festo"

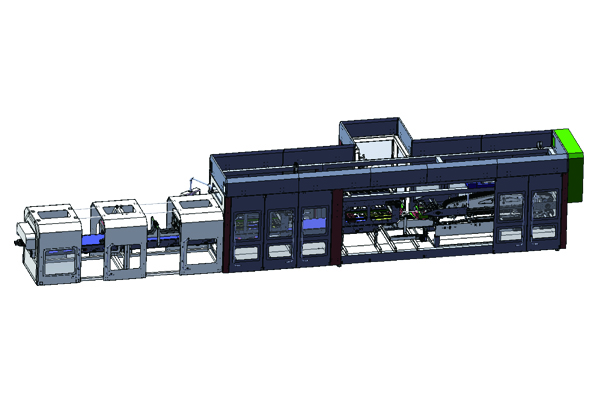

YS-ZX-35TB Shrink Wrapper
Click

YS-ZX-35TB Wrap Around Carton Box Machine
Parameter	ZX-35TB(With turn)
Packing speed	26pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	800 mm(customer order)
Machine size	L11502mmxW2300mmx H2100mm
Power supply	3P AC380V±10% 50HZ 22.15KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"	Motor:"SEW"/'MEIWA'		Turning gripper motor
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:XIAOQUAN
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"Festo"

YS-ZX-35TS Shrink Wrapper
Click

YS-ZX-35TS Wrap Around Carton Box Machine
Parameter	ZX-35S
Packing speed	32pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1200 mm(customer order)
Machine size	L9241mmxW2840mmx H2100mm
Power supply	3P AC380V±10% 50HZ 13.37KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘YOUNGSUN“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Reducer:SITI
			Entrance plate chain:LILAI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:”Airtac“ /'"SMC"

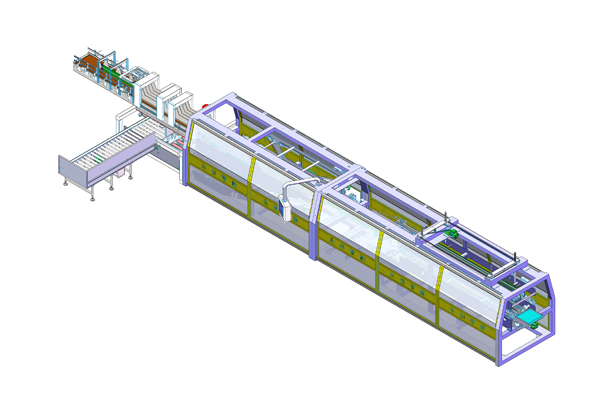

YS-ZB-60TA Shrink Wrapper
Click

YS-ZX-60TA Wrap Around Carton Box Machine
Parameter	ZX-60TA
Packing speed	60pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1200 mm(customer order)
Machine size	L129441mmxW1790mmx H2100mm
Power supply	3P AC380V±10% 50HZ 16.02KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘Siemens“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider		Entrance plate chain:LILAI
			Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components:"SMC"

YS-ZX-60TB Shrink Wrapper
Click

YS-ZX-60TB Wrap Around Carton Box Machine
Parameter	ZX-60TB
Packing speed	60pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1200 mm(customer order)
Machine size	L12944mmxW1790mmx H2100mm
Power supply	3P AC380V±10% 50HZ 16.62KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘Siemens“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider	Entrance plate chain:LILAI		Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components: "SMC"/‘Airtac'

YS-ZX-70A Shrink Wrapper
Click

YS-ZX-70A Wrap Around Carton Box Machine
Parameter	ZX-70A(Without handle)
Packing speed	70pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1200 mm(customer order)
Machine size	L15035mmxW3726mmx H1200mm
Power supply	3P AC380V±10% 50HZ 28.19KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘Siemens“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider	Entrance plate chain:LILAI		Reducer:SITI
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic :"SMC"

YS-ZX-70B Shrink Wrapper
Click

YS-ZX-70B Wrap Around Carton Box Machine
Parameter	ZX-70B(Without handle)
Packing speed	70pcs/min
Protection level	electric appliance cabinet IP54 / pushbutton IP65 / low voltage electric element IP67
Working height	1200 mm(customer order)
Machine size	L14539mmxW3726mmx H1200mm
Power supply	3P AC380V±10% 50HZ 25.04KW
Hot melt system	4KW NORDSON
Electrical configuration	PLC:Siemens	Touchscreen:‘Siemens“		PLC:Siemens
	Servo motor:"Siemens"		Motor:"SEW"/'MEIWA'
	Contactor,electrical relay, disconnector, transducer,pushbutton :Schneider	Entrance plate chain:LILAI		Reducer:"SITI" /"FIXEDSTAR"
	Proximity switch and photoelectricity switch:"SICK"		Cylinder and pneumatic components: "SMC"/‘Airtac'

YS-ZB-4255 Shrink Wrapper
Click

YS-ZB-3246 Semi Automatic Shrink Wrapper Machine
Semi automatic shrink wrapper machine
“one-step” system
Techical Parameters	YS-ZB-3246
Power supply	1P 220V 50HZ/60HZ
Maximum power required	2.1KW
Overall machine dimensions	W690 x L1120mm xH1150m
Working plate height(on stand)	920mm
Machine weight	71KG
Sealing area	W320mm x L 460mm
Maximum product height	150mm
Impulse sealing system	Bottom blade
Maximum roll dimensions	DIA 250mm x W 470mm
Output	4-8pcs/min
Optional	①Roller conveyor ②Scrap rewinder ③Conveyor
Electrical configuration	Intermediate relay:"Schneider"/"Omron"	Contactor:"Scheider"	Button switch:"Scheider"
	Temperature controller:"MEIWA"	Time relay:"MEIWA"	Motor:"MEIWA"
	Pneumatic element:"Airtac"

*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package

①Roller conveyor ②Scrap rewinder

③Conveyor belt

YS-ZB-4255 Shrink Wrapper
Click

YS-ZB-4255 Semi Automatic Shrink Wrapper Machine
Semi automatic shrink wrapper machine
“one-step” system
Techical Parameters	YS-ZB-4255
Power supply	1P 230V
Maximum power required	3.5KW
Overall machine dimensions	W680 x L1370mm xH1200m
Working plate height(on stand)	920mm
Machine weight	130KG
Sealing area	W420mm x L 550mm
Maximum product height	150mm
Impulse sealing system	Bottom blade
Maximum roll dimensions	DIA 250mm x W 600mm
Output	4-8pcs/min
Optional	①Roller conveyor ②Scrap rewinder ③Conveyor
Electrical configuration	Intermediate relay:"Schneider"/"Omron"	Contactor:"Scheider"	Button switch:"Scheider"
	Temperature controller:"MEIWA"	Time relay:"MEIWA"	Motor:"MEIWA"
	Pneumatic element:"Airtac"

*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package

①Roller conveyor ②Scrap rewinder

③Conveyor belt

Click

YS-ZB-5040A Semi Automatic Shrink Wrapper Machine
L-sealer with shrink tunnel "combo" system
Techical Parameters	YS-ZB-5040A
Power supply	3P+N 230V/380V
Maximum power required	5KW
Overall machine dimensions	W775 x L2200mm x H1500
Working plate height(on stand)	920mm
Tunnel entrance dimensions	450 x230mm
Tunnel length	700mm
Machine weight	270kg
Sealing area	W500mm x L 400mm
Maximum product height	160mm
Impulse sealing system	top blade
Maximum roll width	600mm
Compressed air consumption	NO
Compressed air pressure	NO
Output	8-15pcs/min
Electrical configuration	Intermediate relay:"Schneider"/"Omron"	Contactor:"Scheider"	Button switch:"Scheider"
	Temperature controller:"MEIWA"	Time relay:"MEIWA"	Motor:"MEIWA"
	Pneumatic element:"Airtac"

*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package
