Key: Robot,Robot Palletizer,Industrial Robot, Palletizing Robot,Robot Packer,Robotic palletizer
Palletizing Robots: Industrial palletizing refers to loading and unloading parts, boxes or other items to or from pallets. Automated palletizing refers to an industrial robot palletizer performing the application automatically.
Robot palletizing can be seen in many industries including food processing, manufacturing, and shipping.
A robotic palletizer is able to handle heavy payloads and have large horizontal and vertical reaches that allow parts to be palletized from varying distances.
Robot Total：15products

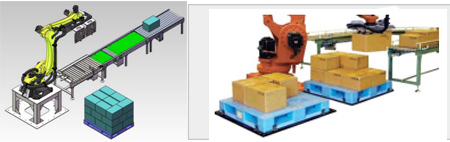

| YSR-4-80-F | |
| Series Multi-axls Robot palletizer | |
| Model | YSR-4-80-F |
| Rated payload | 80kg |
| Power supply | 8.7KW |
| Reach | 3150mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Weight of robot | 1400KG |
| Pose repeatability | ±0.5mm |
| Floor area | 900*900mm |
| Axis data | A1 ±180° A2＋90°至-40° A3＋15°至-115° A4 ±360° |
| Max speed | A1 120°/s A2 135°/s A3 135°/s A4 300°/s |

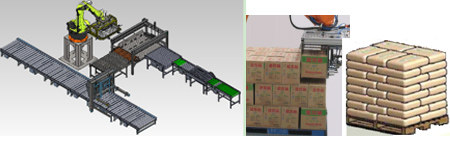

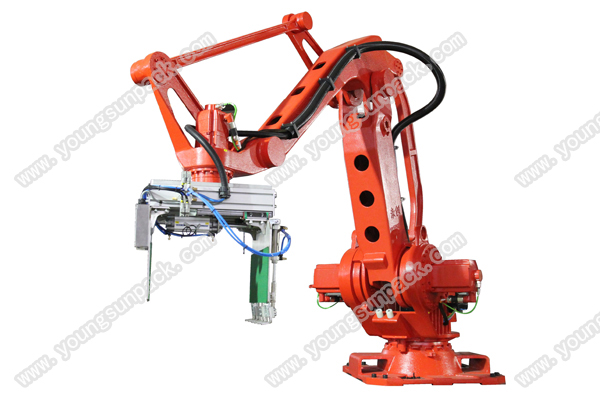

| YSR-4-220-F | |
| Series Multi-axls Robot palletizer | |
| Model | YSR-4-220-F |
| Rated payload | 220kg |
| Power supply | 15KW |
| Reach | 3150mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Weight of robot | 1600KG |
| Pose repeatability | ±0.5mm |
| Floor area | 900*900mm |
| Axis data | A1 ±180° A2＋90°至-40° A3＋15°至-115° A4 ±360° |
| Max speed | A1 95°/s A2 95°/s A3 95°/s A4 240°/s |

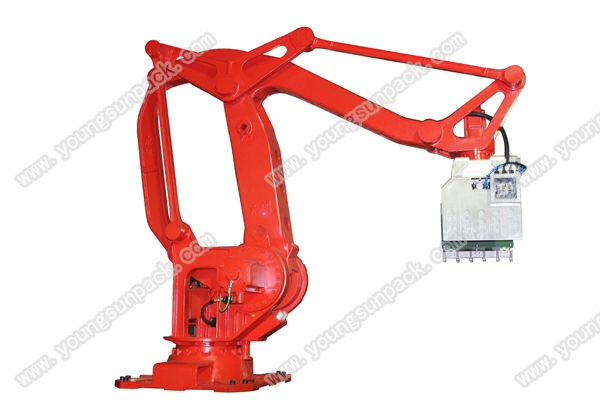

| YSR-4-300-F | |
| Series Multi-axls Robot palletizer | |
| Model | YSR-4-300-F |
| Rated payload | 330kg |
| Power supply | 16.6KW |
| Reach | 3150mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Weight of robot | 1700KG |
| Pose repeatability | ±0.5mm |
| Floor area | 900*900mm |
| Axis data | A1 ±180° A2＋90°至-40° A3＋15°至-115° A4 ±360° |
| Max speed | A1 90°/s A2 90°/s A3 90°/s A4 195°/s |
| YSR-4-470-F | |
| Series Multi-axls Industry Robot | |
| Model | YSR-4-470-F |
| Rated payload | 470kg |
| Power supply | 26.9KW |
| Reach | 3150mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Weight of robot | 2210KG |
| Pose repeatability | ±0.5mm |
| Floor area | 950*950mm |
| Axis data | A1 ±180° A2＋90°至-40° A3＋15°至-115° A4 ±360° |
| Max speed | A1 85°/s A2 80°/s A3 80°/s A4 165°/s |
| YSR-2-60-F | |
| Series Multi-axls Industry Robot | |
| Model | YSR-2-60-F |
| Rated payload | 20-60kg |
| Power supply | 5.0KW |
| Reach | ≤1800mm |
| Number of axes | 2 |
| Mounting position | Floor |
| Weight of robot | 200KG |
| Pose repeatability | ±0.5mm |
| Floor area | 700*700mm |
| Axis data | A2＋90°至-35° A3＋15°至-110° |
| Max speed |
A2 105°/s A3 105°/s |

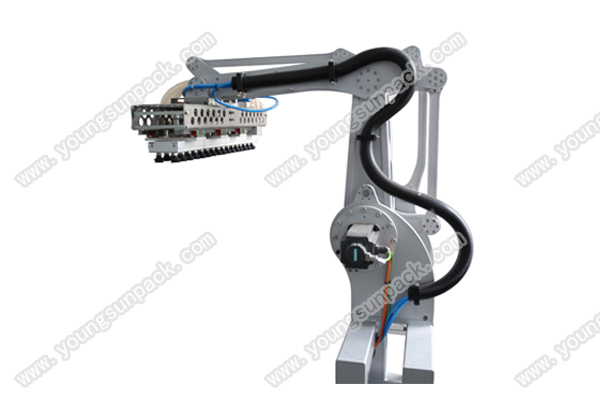

| YSR-2-120-F | |
| Series Multi-axls Industry Robot | |
| Model | YSR-2-60-F |
| Rated payload | 120kg |
| Power supply | 6.2KW |
| Reach | 3150mm |
| Number of axes | 2 |
| Mounting position | Floor |
| Weight of robot | ≤600KG |
| Pose repeatability | ±0.5mm |
| Floor area | 700*700mm |
| Axis data | A2＋90°至-40° A3＋15°至-115° |
| Max speed |
A2 125°/s A3 125°/s |
| YSR-2-220-F | |
| Series Multi-axls Industry Robot | |
| Model | YSR-2-220-F |
| Rated payload | 220kg |
| Power supply | 8.6KW |
| Reach | 3150mm |
| Number of axes | 2 |
| Mounting position | Floor |
| Weight of robot | ≤800KG |
| Pose repeatability | ±0.5mm |
| Floor area | 700*700mm |
| Axis data | A2＋90°至-40° A3＋15°至-115° |
| Max speed | A2 95°/s A3 95°/s |

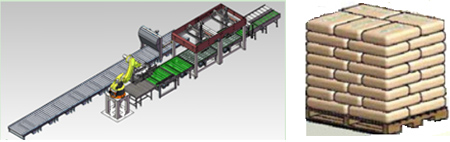

Click| YSR-2-600-F | |
| Series Multi-axls Industry Robot | |
| Model | YSR-2-600-F |
| Rated payload | 600kg |
| Power supply | 15.4KW |
| Reach | 3150mm |
| Number of axes | 2 |
| Mounting position | Floor |
| Weight of robot | ≤1400KG |
| Pose repeatability | ±0.5mm |
| Floor area | 700*700mm |
| Axis data |
A2＋90°至-40° A3＋15°至-115° |
| Max speed |
A2 65°/s A3 65°/s |

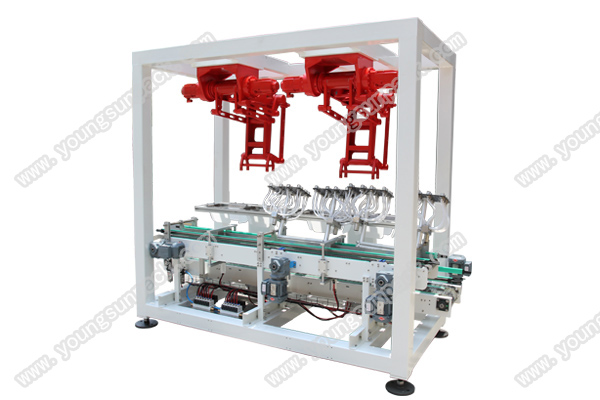

Click| YSR-2-20-C | |
| Series Multi-axls Industry Robot | |
| Model | YSR-2-20-C |
| Rated payload | ≤20kg |
| Power supply | 3.8KW |
| Reach | 1105mm |
| Number of axes | 2 |
| Mounting position | Ceiling |
| Weight of robot | 155KG |
| Pose repeatability | ±0.5mm |
| Floor area | 320*440mm |
| Axis data |
A2-10°至+95° A3-50°至+50° |
| Max speed |
A2 65°/s A3 65°/s |

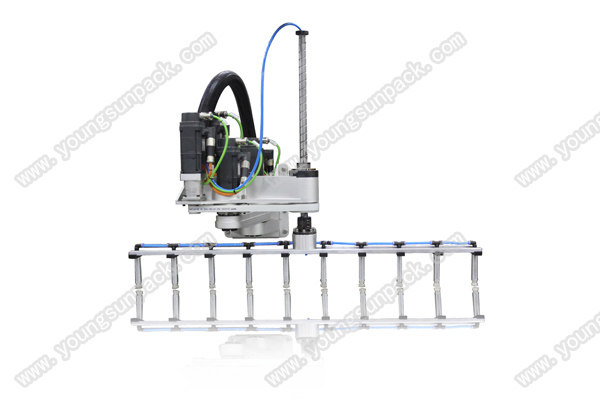

Click| YSRC-4-10-W | |
| Series Multi-axls Industry Robot | |
| Model | YSRC-4-10-W |
| Rated payload | ≤10kg |
| Power supply | 3KW |
| Reach | 600mm,800mm |
| Number of axes | 4 |
| Mounting position | Ceiling |
| Weight of robot | 50KG |
| Pose repeatability | ±0.5mm |
| Floor area | 230*300mm |
| Axis data | A1 ±180° A2 ±150° A3 400mm A4 ±500° |
| Max speed | A1 225°/s A2 225°/s A3 170°/s A4 180°/s |
| YSRD-4-03-C | |
Series Delta Robot |
|
| Model | YSRD-4-03-C |
| Delta | delta type |
| Power supply | 2.9kw |
| Degree of freedom | 4(Rotational axis optional) |
| Weight | 60Kg |
| Working volume(optional) | Φ800X250mm Φ1130X300mm Φ1350X350mm |
| Rotational axis(optional) | ±360° |
| Maximum payload | 1Kg |
| Maximum speed | 160p/min |
| Pose repeatability | ±0.3mm |
Angle repeatablity |
±0.3° |
| Cycle time | 0.5s |
| Cycle path | 25X305X25 |
| Payload | 0.5Kg |
| YSRD-4-01-C | |
Series Delta Robot | |
| Model | YSRD-4-01-C |
| Delta | delta type |
| Power supply | 2.9kw |
| Degree of freedom | 4(Rotational axis optional) |
| Weight | 60Kg |
| Working volume(optional) | Φ800X250mm Φ1130X300mm Φ1350X350mm |
| Rotational axis(optional) | ±360° |
| Maximum payload | 1Kg |
| Maximum speed | 160p/min |
| Pose repeatability | ±0.3mm |
Angle repeatablity |
±0.3° |
| Cycle time | 0.5s |
| Cycle path | 25X305X25 |
| Payload | 0.5Kg |

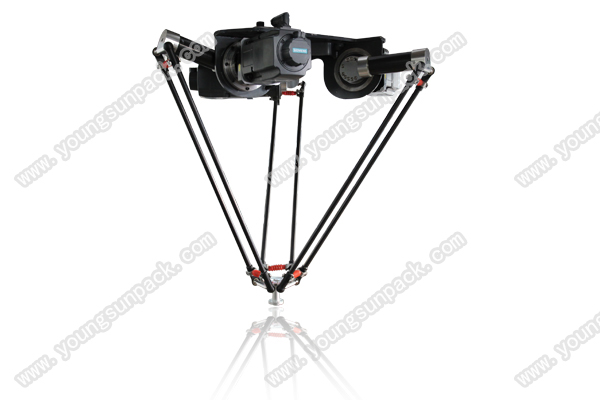

| YSRD-3-01-C | |
Series Delta Robot |
|
| Model | YSRD-3-01-C |
| Delta | delta type |
| Power supply | 2.4kw |
| Degree of freedom | 3 |
| Weight | 52Kg |
| Working volume(optional) | Φ800X250mm Φ1130X300mm Φ1350X350mm |
| Rotational axis(optional) | ±360° |
| Maximum payload | 1Kg |
| Maximum speed | 160p/min |
| Pose repeatability | ±0.3mm |
| Cycle time | 0.5s |
| Cycle path | 25X305X25 |
| Payload | 0.5Kg |

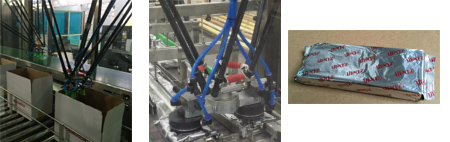

| YSRD-03-C | |
Series Delta Robot |
|
| Model | YSRD-3-03-C |
| Delta | delta type |
| Power supply | 4.5kw |
| Degree of freedom | 3 |
| Weight | 72Kg |
| Working volume(optional) | Φ800X250mm Φ1130X300mm Φ1350X350mm |
| Rotational axis(optional) | ±360° |
| Maximum payload | 3Kg |
| Maximum speed | 160p/min |
| Pose repeatability | ±0.3mm |
Angle repeatablity |
±0.3° |
| Cycle time | 0.6s |
| Cycle path | 25X305X25 |
| Payload | 1Kg |
