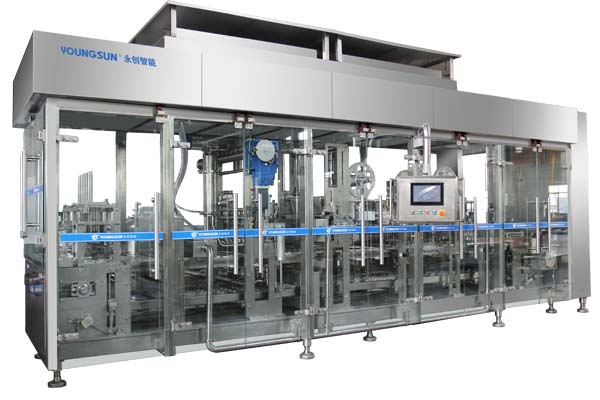

| YSZB Serial Automatic Plastic Cup Filling and Sealing Machine | ||||
YSZB Series automatic plastic cup filling and sealing machine is capable of working under full-automatic conditions. The process is from cup loading, cup falling ,filling,lid foil feeding and sealing ,date printing and product output and liquid controlling. The filling and sealing machine can be customized to meet different customers’ needs. The machine has been widely used in the food industry, packaging of the yogurt ,milk, mineral water, beverage , ice cream, seasoning and so on. Applicable Filling material:Liquid: Yogurt, milk, sauce and so on. Cap film material:Al+plastic laminated film; paper+plastic laminated film,0.08mm-0.15mm. |
||||
| Model | YSZB- 6000 |
YSZB- 9000 |
YSZB-12000 | YSZB- 20000 |
Step cups |
4 | 6 | 8 | 16 |
Standard capacity |
6000 cups/h |
9000 cups/h |
12000 cups/h |
20000 cups/h |
Filling volume |
50g-300g | 50g-300g | 50g-300g | 50g-300g |
Cup diameter |
φ50mm~ φ80mm |
φ50mm~ φ80mm |
φ50mm~ φ80mm |
φ50mm~ φ80mm |
| Cup height | 25-140mm | 25-140mm | 25-140mm | 25-140mm |
| Cap film | Sheet/Roll | Sheet/Roll | Sheet/Roll | Sheet/Roll |
| Total power | 9.5KW | 10.5KW | 11.5KW | 21.5KW |
| Air pressure | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
Air consumption |
≥0.8m3/min | ≥0.8m3/min | ≥0.8m3/min | ≥0.8m3/min |
Outer dimensions (appr.) |
5×2.5×3.2 m (L×W×H) |
5×2.8×3.2 m (L×W×H) |
5.5×3.2×3.2 m (L×W×H) |
7×3.5×3.5 m(L×W×H) |
| Weight(appr.) | 3200Kg | 4200Kg | 4800Kg | 6200Kg |
Power supply (optional) |
3N-PN-50Hz 380V/220V (3P 5 wires) | |||
| Main Configuration: | ||
| Servo motor | Siemens | |
| Cylinder: | SMC/ Festo | |
| Reducer box | SEW | |
| Sensor | P+F | |
| Electromagnetic clutch | Yanxin | |
| Touch screen | Siemens | |
| PLC | Siemens | |
| Inverter | Schneider,Danfoss | |
| Cylinder inspecting sensor | SMC | |
| Position inspecting sensor | P+F | |
| All low voltage electrical | Schneider,Siemens | |
| Warning light | Schneider | |
| Central lubrication system | BIJUR | |
| Ultraviolet germicidal lamp | Heraeus | |
| Parameters and functions are subject to change without further notice. | ||
| Optional Function: | ||
| 1. Servo driving filling | ||
| 2. Class 100 laminar flow hood | ||
| 3. Heraeus sterilizing module | ||
| 4. Fruit grain mixing filling | ||
| 5. Common high temperature sterilization module | ||
| 6. Code printer, ink-jet printing | ||
| 7. Conveyors | ||
| 8. Can be equipped with automatic packaging line. |
| Machine Structure: | |
| Conveyor system | Automatic feeding cup system |
| Cup falling system | No cup detecting system |
| Inside cup sterilization system (optional) | Filling system |
| Cap sterilization system (optional) | Cap film adding system |
| Sealing system | Cup output system |
| CIP cleaning nozzle | Central lubrication system |
Some Samples:
