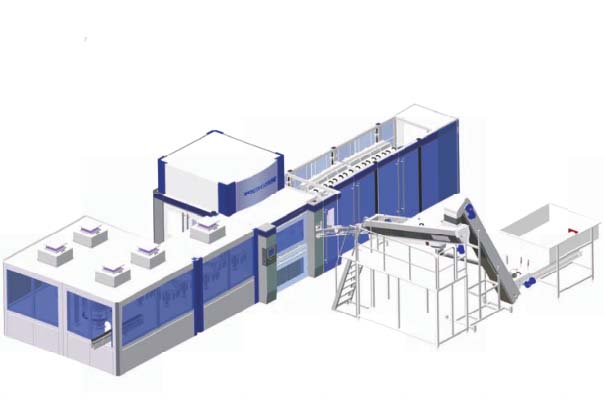

| CGX722 Blowing, Filling and Capping Combiblock | |
CGX722 blowing, filling and capping machine integrates the blowing system, filling system and capping system. The transmission, empty bottle handing and storage processes are reduced. It has a wide application in beverage industry and packaging of liquid products as juice, milk drink, water etc. |
|
| Main Technical Data: | |
| Power supply: | 380V/50Hz |
| Production capacity: | 36000bp/h |
| Filling products: | Liquid products |
| Filling heads: | 72 |
| Screwing heads: | 24 |
| Air consumption: | 0.4m3/h |
| Air pressure: | 0.7Mpa |
| Applicable bottle: | PET round or square bottle |
| Max. Bottle body diameter: | 75mm |
| Max.Height: | 260mm |
| Max.Mouth diameter: | 38mm |
| Max.Perform height: | 140mm |
| According to different characteristics of products, the capacity will be different. | |
| Machine Features: |
| 1.Blowing, filling and capping are integrated in one machine, Bottle neck handling in all process. |
| 2.Ion air blowing dust-suction system and hydrogen peroxide sterilization are optional. |
| 3.Siemens PLC control marks machine in an easy and stable operation. |
| 4.Sanitary and washable capping system,the intensive UV sterilization and aseptic water rinsing sterilization for cap feeding are optional. |
| 5.High efficiency, low energy,easy maintenance. |
Some Samples:
